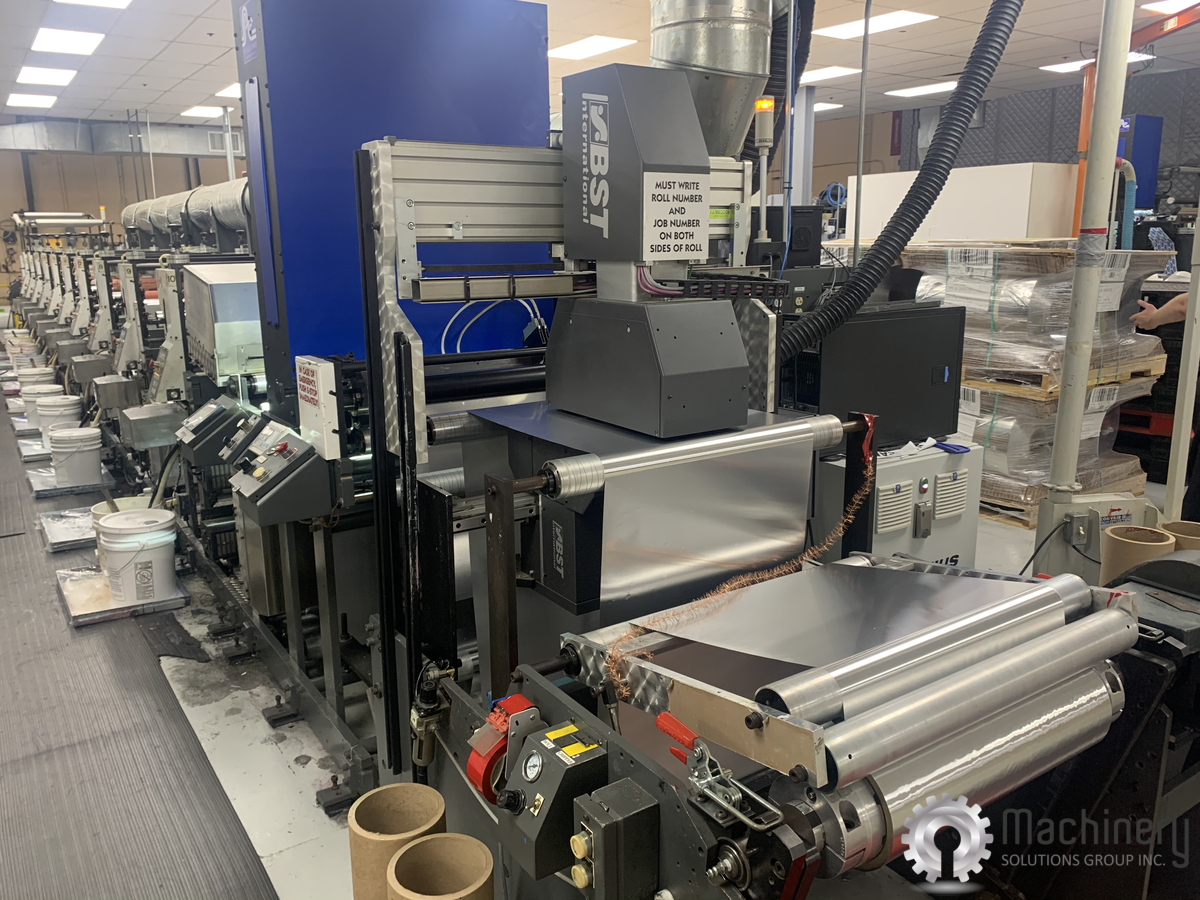

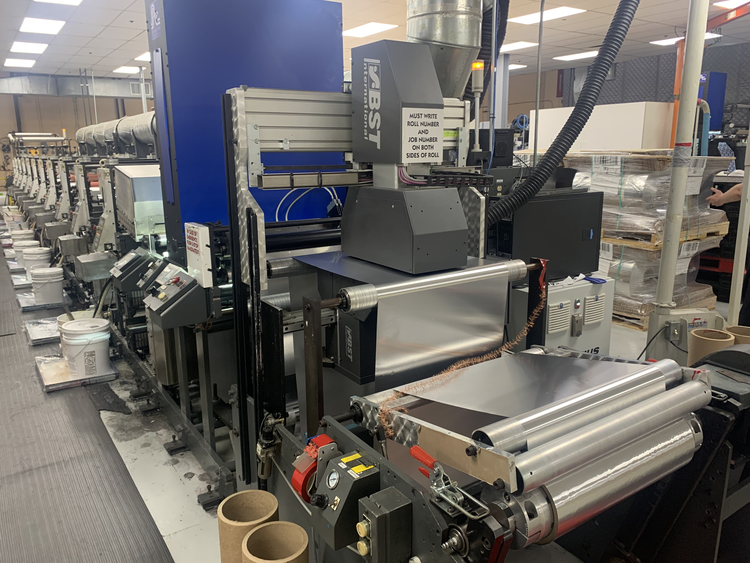

2012 AQUAFLEX GFLX 2800 (10) Unit Flexo Press System 28” Width

2012 AQUAFLEX GFLX 2800

28" Width x 9” - 24” Repeats

This flexible packaging press system is designed for film, foil, labels, tags, or carton stock up to 24 points thick. It is equipped with UV, IR and hot air drying capabilities.

Equipped with:

(1) Unwind unit, 40” roll capacity, including two 3” core shaft, web guide, splicing table, hydraulic roll lift and automatic Magpower close loop tension control system with brake
(1) Double side corona treatment unit
(1) Servo motor driven variable in feed air nip roll station with closed loop tension
(10) New generation high precision walk in model flexo print stations including
(1) High-capacity hot air drying system
(5) high pressure supply air blowers 1 high pressure exhaust air blower
(2) UV dryer 1 lamp 400w per inch capacity with power supply, lamp housing and exhaust blower
(1) IR drying system with 10 High capacity drying cabinets with variable power infrared lamps & hot air supply nozzles and temp display
(10) Motorized circumferential 360 register controls for all print stations
(1) Slitting station with 3 air crush knives and lateral adjustment
(1) Out feed air nip roll station
(1) Supported motorized single rewind unit, 40” roll capacity including two 3” diameter core shafts, AC vector motor drive with automatic tension control, Quick change release upgrade
(1) BST / Premius vision system with defect detection, front side
(1) BST / Handyscan SHS4000 for back side
