2004 Muller Martini SLS 3000 Inserting Line

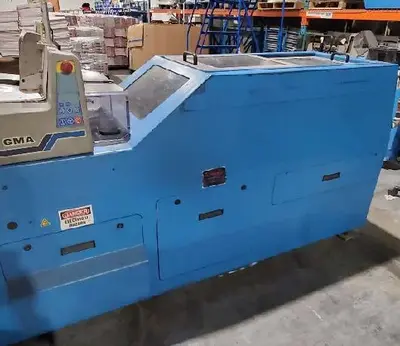

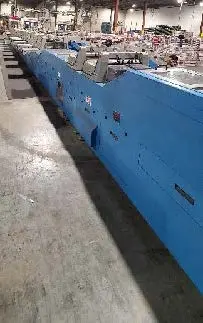

Müller Martini Model SLS 3000 Inserting Line

Equipment Overview:

- Basic Machine: 1 SLS 3000 base unit for inserting systems.
- Feeding Units:1 Double Gripper Feeder for efficient material handling.

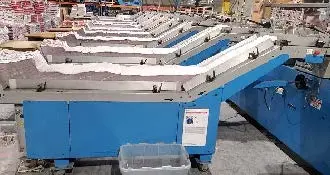

- 2 Vibration Tables, aiding in preparing the inserts.
- 4 Machine Modules, including 2 for Feeder and 2 with double gripper feeder.
- 20 Standard Feeders and 2 Jacket Feeders for diverse material feeding.
- Capacity:264 Pocket Liners and 193 Grippers, enhancing sorting and alignment.
- Stacking Units:1 Stacker Feeding mechanism for organized output.

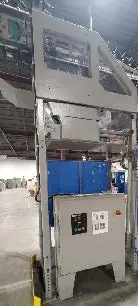

- 2 Quipp Stackers for efficient stacking of finished products.
- Control System: Winlincs 7, providing advanced user interface and control.

Performance Specifications:

- Feeding Speed: Maximum of 1.2 meters per second (approx. 3.94 feet per second).
- Format Sizes: Maximum Length: 500 mm (approx. 19.69 inches).
- Minimum Length: 148 mm (approx. 5.83 inches).
- Maximum Width: 340 mm (approx. 13.39 inches).
- Minimum Width: 105 mm (approx. 4.13 inches).
- Pile Height: Maximum of 350 mm (approx. 13.78 inches).
- Mechanical Performance: Capable of processing up to 100,000 specimens per hour.

Condition and Availability:

- Like new with very low production hours.
- Available immediately for purchase or use.
