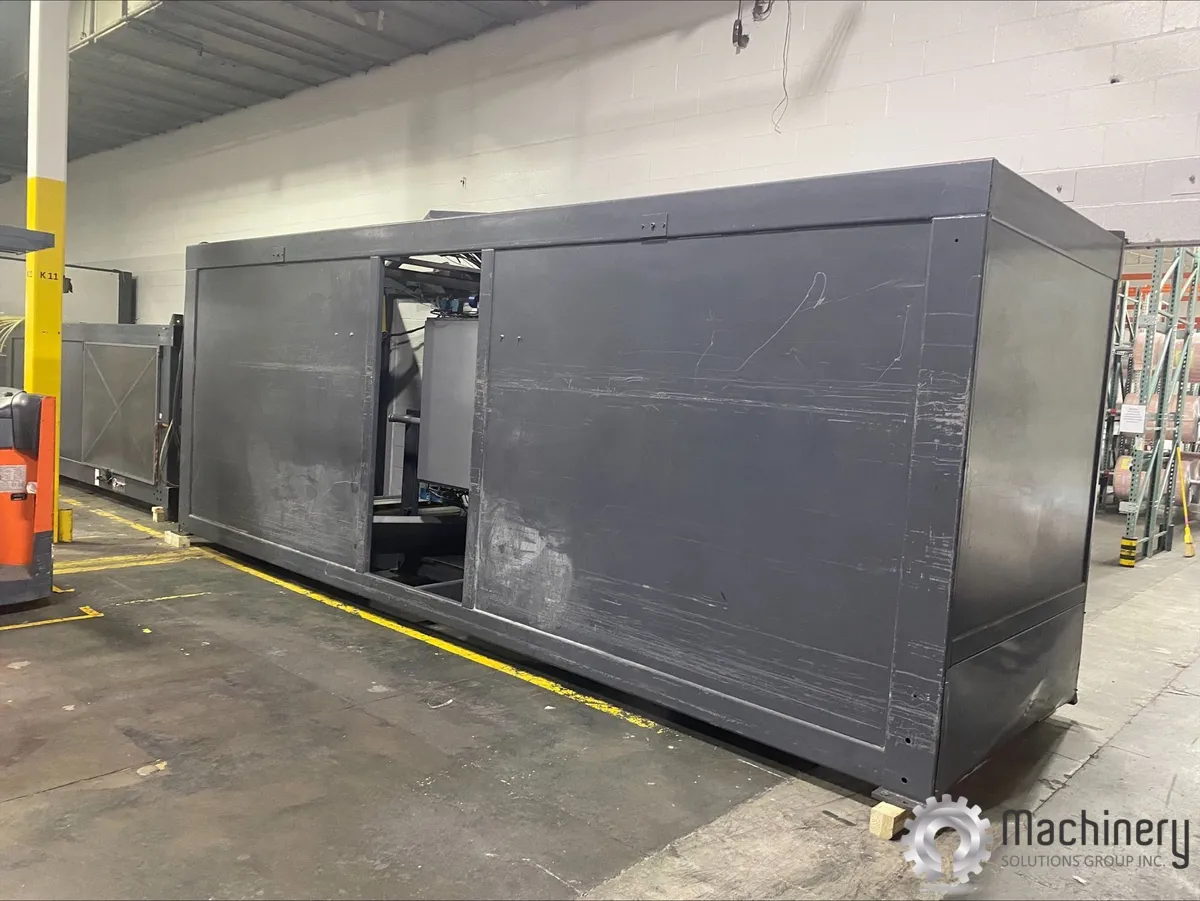

2008 Martin Automatic RMAP Automatic Transfer Rewind Model: RMAP 13-40-50
Have one to sell?
ConditionUsed
1 available
The Martin RMAP Automatic Transfer Rewind is a robust, high-performance system tailored for industrial applications requiring precision and efficiency. Rated for speeds up to 1200 FPM, it accommodates materials up to 40” in width and a maximum roll diameter of 50". With advanced splicing, tension control, and web handling technologies, this system is designed for seamless operation, consistent performance, and user-friendly handling.
2008 Martin Automatic RMAP Automatic Transfer Rewind Model: RMAP 13-40-50
Specifications:
Maximum Transfer Speed: Up to 1,200 FPM
Maximum Web Width: Up to 40 IN
Maximum Roll Diameter: Up to 50 IN
Rewinder Chucks: Supports max web width of 34 IN
Two chuck sizes: 6” and 12”
Internal Rollers: Measure 42 IN in width
Features:
Automatic splice initiation and web break detection
Pneumatic tension adjustment for on-the-run control
Actuated knife cut-off for precision slitting
Low-inertia idler rollers and permanently lubricated bearings
Heavy-duty welded steel framework for long-term durability
Manual or automatic roll change with PLC integration
Optional Features:
Integrated turn bar or bay window for right-angle installation
Core shaft handling cart or "bionic arm" for easy roll management
Automatic tension reduction based on press signals
Integrated slitting system and automatic web guide
Engineered for reliability and performance, this RMAP model delivers exceptional value for a wide range of industrial applications. Contact us today for more details or to schedule an inspection!
