The Bobst SP 102 E is a high-performance automatic die-cutting machine, designed for precise cutting and stripping of various materials, including paperboard, carton board, and corrugated sheets. Engineered for efficiency and reliability, this machine is an excellent choice for packaging and commercial print applications requiring high-speed and high-quality output.

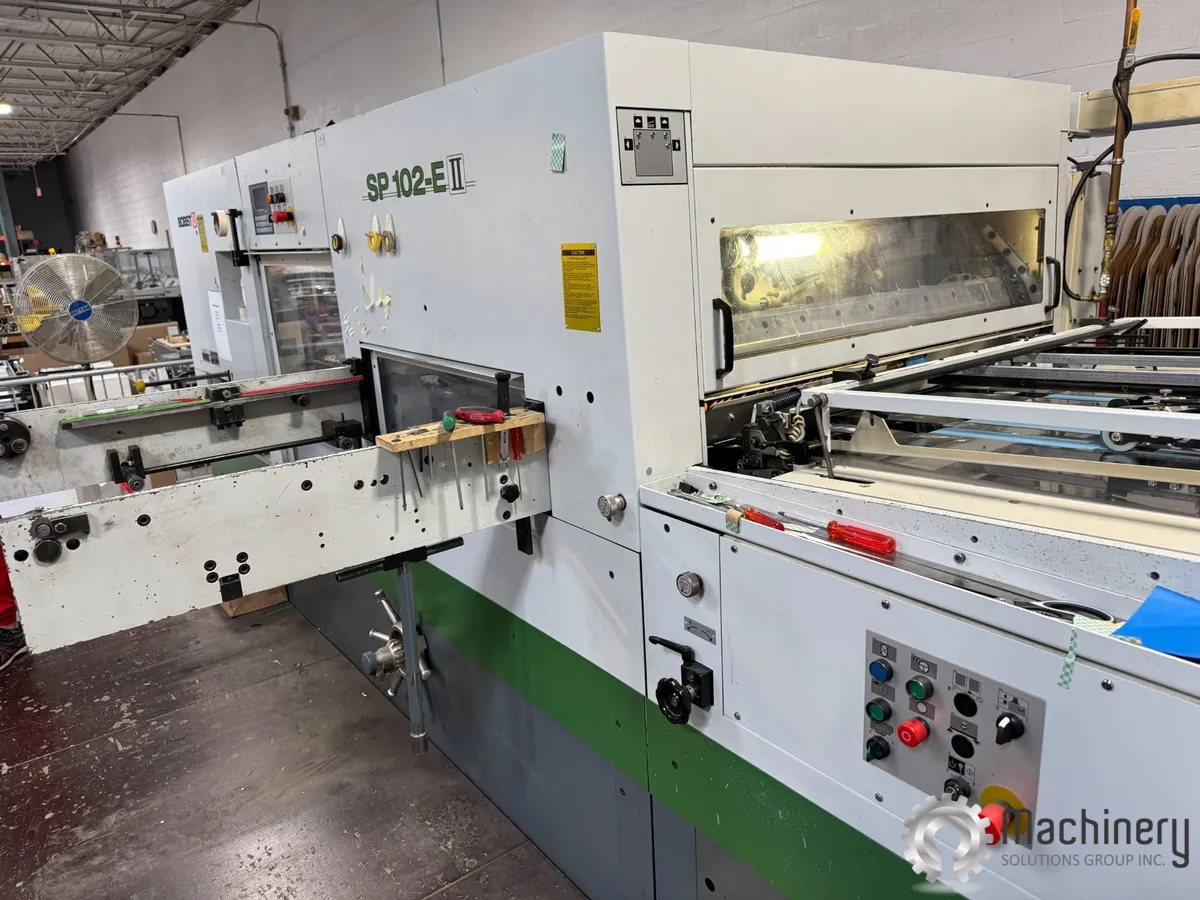

For Sale: Bobst SP 102 E Automatic Die Cutter
Max Sheet Size: 40 1/8” x 28 3/8” (1020 mm x 720 mm)
Min Sheet Size: 15 ¾” x 13 ¾” (400 mm x 350 mm)
Max Cutting Force: 250 TON
Processing Capabilities:
Paper: Min. 80g/m²
Cardboard: 250 – 2000 g/m²
Corrugated Board: E & B flute, max. 4 mm thickness
Cutting Area:
With front trim: Max. 705 x 1020 mm
Without front trim: Max. 720 x 1020 mm
Production Speed: Up to 7,500 sheets per hour (varies based on material and job type)
Key Features:
Feeder:
Standard feeder with all necessary equipment
Non-Stop Feeder System for uninterrupted production
Pile Height at Feeder:
With non-stop system: Max. 1100 mm
Without non-stop system: Max. 1400 mm
Platen Section:
Die-Cutting Chase with fixed bottom plate
Standard Die Cutting Plate: 4 mm thickness
Stripping Station:
Upper Stripping Frame
Lower Stripping Frame with complete standard equipment
Includes aluminum bars, needle supports, and needles for efficient stripping
Gripper System: Adjustable 8 – 17 mm to accommodate various materials
Additional Equipment:
Complete set of books and manuals (electrical diagrams, spare parts, instruction books)
Standard tools and accessories
Condition & Availability
This Bobst SP 102 E Die Cutter is in excellent working condition and available for immediate sale and inspection.
